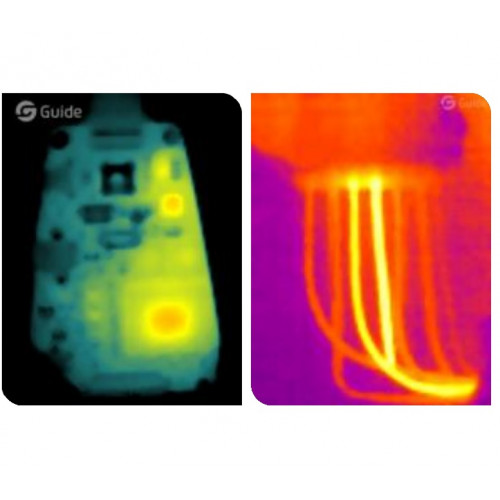

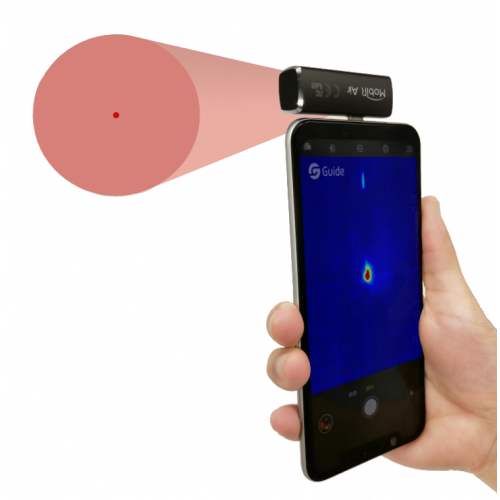

MobIR Air transforms the smartphone into a thermal camera. When connect it to a smartphone, the MobIR Air allows you to see the world which is invisible with your eyes. It can find and fix the HVAC issues quickly and accurately, detect building problems effectively and safely and test the electrical faults.
This module doesn't have Night vision and body thermography functions.
The application is only in English and Chineese (no Hungarian language available yet).
The smartphone must be compatible with USB OTG. In case of doubt, you can download free USB OTG Checker from Apple Store.
Infrared detector | |
Detector type | VOx |
Infrared resolution | 120×90 @17 μm |
Wavelength range | 7.5-14 μm |
Frame rate | 25 Hz |
Lens | |
Focal length | 2.3 mm |
Field of view | 50° |
Focusing mode | Focus free |
Temperature measurement | |
Measurement range | from -20°C to 120°C |
Measurement accuracy | ±5°C |
Application functions | |
Photo | Available |
Video | Available |
Color palettes | 9 and 1 customized |
Instant sharing | Images, videos |
Normal thermography | Yes |
Body thermography | No |
Night vision | No |
Power system | |
Power supply | 4.5 - 5.5 V |
Power consumption | 150 mW |
Environment parameters | |
Working tempertaure | 0-40°C |
IP rating | IP43 |
Certification | CE, FCC, RoHS |
Physical parameters | |
Connector | Lightning |
Weight | ≤20 g |
Size (LxWxH) | 50 × 14 × 18 mm |
Color | Dark grey |
Contains | The device, Carrying box, Wrist strap, User manual, Certificate of approval |

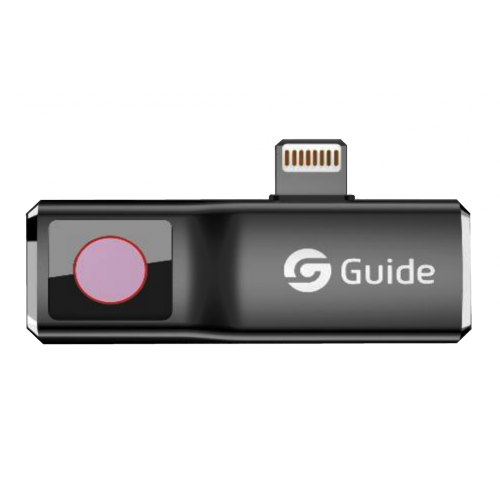

MobIR Air - iOS - Dark grey
- Brand: Guide
- Product Code: MobIR Air - iOS - Dark grey
- Availability: 2-3 weeks
-
114,550Ft
- Ex Tax: 90,197Ft
Tags: MobIR Air
