OPERATION

• The extracted flows are regulated according to the rate of pollutants detected, thanks to electronic VOC, C02 and H2O sensors located at the motor-fan..
• Fresh air supplied through inlets installed on windows and doors.
• Stale air is extracted via the ventilation terminals.

KIT COMPOSITION

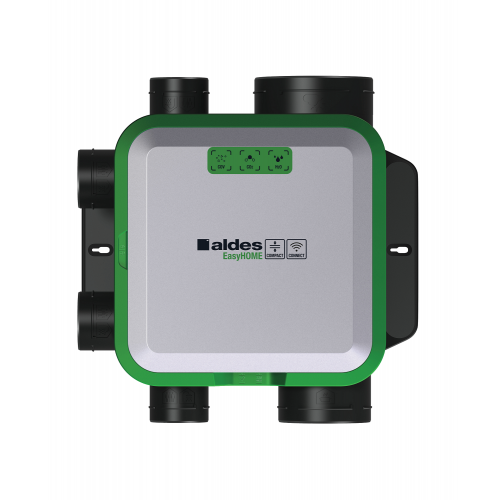

• 1 exhaust fan unit EasyHOME® PurAir.
• 2 caps Ø80.

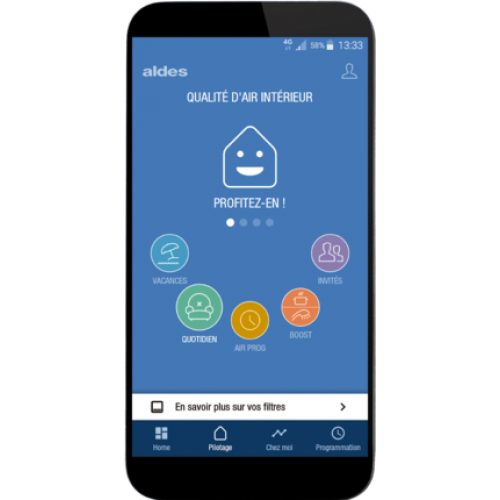

VARIABLE SPEED MOTOR

• Daily mode : fan speed proportional to levels of VOC and CO2 detected.
• Boost mode : automatically activated by the H2O sensors if the relative humidity increases.
• Guests moed : in case of significant rise in CO2 levels detected, automatic activation by CO2 and VOC sensors.
• Holidays mode : minimum air renewal rate for extended periods of absence.

CONNECTIONS

• 1 connection Ø125 mm for kitchen.
• 4 connections Ø80 mm for batchrooms and toillets.
• 1 connection Ø160 (or Ø125 mm with included adaptor) for air extraction.

ASSEMBLY

• Assembly in the attic, suspended with supplied cords to avoid vibrations.

• Quick-connect electrical terminal block.
• Compatible with all tubes type network : Algaine (flexible) and Optiflex (semi-rigid).

WARRANTY

Guaranteed for 2 years subject to compliance with the conditions of implementation, use and maintenance described in the manual.
