OPERATION

• Constant and continuous air renewal.
• Fresh air supplied through inlets installed on windows and doors.
• Stale air is extracted via the ventilation terminals.

KIT COMPOSITION

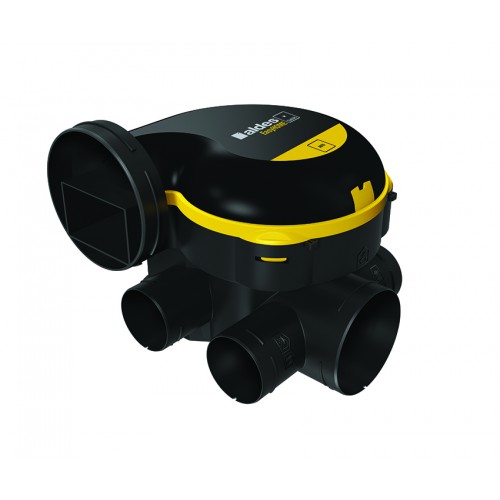

• 1 exhaust fan unit EasyHOME® AUTO.
• 2 caps Ø80.

2 SPEED MOTOR WITH MANUAL INVERTER

• Daily mode : low-speed ventilation adapted to each ventilated room.

• Mode boost : high ventilation mode in kitchen, manual activated via inverter, to remove quickly humidity and mealtime odours.

CONNECTIONS

• 1 connection Ø125 mm for kitchen.
• 4 connections Ø80 mm for batchrooms and toillets.
• 1 connection Ø160 (or Ø125 mm with included adaptor) for air extraction.

ASSEMBLY

• Assembly in the attic, suspended with supplied cords to avoid vibrations.

• Quick-connect electrical terminal block.
• Compatible with all tubes type network : Algaine (flexible) and Optiflex (semi-rigid).

WARRANTY

Guaranteed for 2 years subject to compliance with the conditions of implementation, use and maintenance described in the manual.
